1. Signal Heads ;- Red Light , Yellow Light, Green Light
2. Controller :- Timing and Sequencing, Input from Sensors, Coordination, Preemption and Priority, Monitoring and Diagnostics, Communication
3. Sensors :- Inductive Loop Detectors, Video Detection Systems, Microwave Radar Sensors, Passive Infrared (PIR) Sensors, Ultrasonic Detectors, Advanced Detection Systems
4. Power Supply :- Electrical Grid Connection, Backup Power Systems, a. Uninterruptible Power Supply (UPS), b. Emergency Generators, Energy-Efficient Technologies, Solar-Powered Systems.

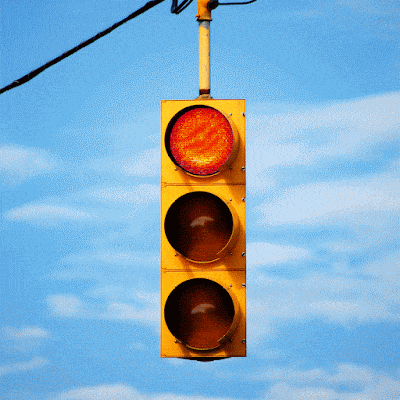

Signal heads are the visible components of traffic signals that display the various colored lights used to communicate instructions to drivers and pedestrians. They are typically mounted on poles or overhead structures at intersections or other locations where traffic control is necessary. Here’s a breakdown of the signal heads and their indications:

Red Light:

The red light is typically at the top or leftmost position in a signal head. When illuminated, it indicates that vehicles and pedestrians must come to a complete stop and remain stopped until the light changes to green.

Yellow Light:

The yellow light is usually positioned in the middle of the signal head. It is about to change from green to red. When illuminated, drivers should prepare to stop if they can do so safely. In some jurisdictions, a flashing yellow light may be used to indicate caution, such as at a pedestrian crosswalk.

Green Light:

The green light is typically located at the bottom or rightmost position in a signal head. When illuminated, it indicates that vehicles and pedestrians have the right-of-way to proceed in the direction indicated by the green light. Drivers should still exercise caution and yield to any pedestrians or vehicles already in the intersection.

Signal heads may have additional features to accommodate specific traffic scenarios:

Arrow Indications:

Some signal heads include arrows alongside the traditional red, yellow, and green lights. These arrows can point in different directions, indicating specific permitted movements for vehicles. For example, a green arrow pointing right means vehicles can turn right, even when the main green light is red.

1. Pedestrian Signals: Pedestrian signal heads are separate units mounted at eye level for pedestrians. They typically display a “Walk” symbol when pedestrians are allowed to cross the street and a flashing or steady “Don’t Walk” symbol when they should not enter the roadway.

1. Bicycle Signals: In areas with dedicated bicycle lanes or bike-friendly infrastructure, signal heads may include bicycle symbols or separate bicycle-specific signal indications to regulate bicycle traffic.

Signal heads are designed to be easily visible to drivers and pedestrians from a distance, even in various weather conditions. They are equipped with high-intensity LED lights that consume less energy, have longer lifespans, and provide better visibility compared to traditional incandescent bulbs.

It’s important for road users to pay attention to signal heads and follow their indications to ensure safe and orderly movement through intersections.

The traffic signal controller is the central electronic device responsible for managing the timing and sequencing of signal phases at intersections. It controls when each signal head displays a particular color (red, yellow, or green) to regulate traffic flow. Here’s an overview of the traffic signal controller and its functions:

1. Timing and Sequencing: The controller is programmed with specific timing plans that dictate the duration of each signal phase. These plans determine how long each signal indication, such as green, yellow, and red, will be displayed to vehicles and pedestrians. The controller manages the transition between different signal phases based on these timing plans.

1. Input from Sensors: The traffic signal controller can receive input from various sensors located at the intersection. These sensors detect the presence and movement of vehicles or pedestrians and provide real-time information to the controller. The controller uses this input to adjust the timing of signal phases, prioritize certain movements, or optimize traffic flow based on current conditions.

1. Co-ordination: In cases where multiple intersections are part of a coordinated traffic signal system, the controller ensures that signal timings are synchronized along a corridor. By coordinating the signals, the controller aims to minimize delays, improve traffic progression, and enhance overall efficiency.

1. Preemption and Priority: The controller may also have the capability to respond to special situations or emergency vehicles. For example, it can receive signals from emergency vehicle detection systems, allowing it to preempt the normal signal timing and provide a green light for the approaching emergency vehicle. Similarly, the controller can assign priority to certain movements, such as giving longer green times to high-demand traffic directions.

1. Monitoring and Diagnostics: The traffic signal controller can monitor its own performance and detect faults or malfunctions. It may have built-in diagnostics to identify issues such as lamp failures, sensor faults, or communication problems. This information can be used for maintenance and troubleshooting purposes.

1. Communication: In modern traffic signal systems, controllers are often equipped with communication capabilities to facilitate coordination with other controllers or a centralized traffic management system. This enables remote monitoring, adjustment of signal timings, and exchange of data for improved traffic control and management.

Traffic signal controllers can vary in complexity and features depending on the specific requirements and technological advancements of the region or intersection they serve. They are typically housed in specialized cabinets located near the intersection and are designed to withstand harsh weather conditions and vandalism.

It’s worth noting that traffic signal controllers are typically programmed and configured by traffic engineers or transportation agencies to ensure safe and efficient traffic operations based on local regulations and traffic patterns.

Sensors play a crucial role in modern traffic signal systems by providing real-time information about the presence and movement of vehicles, pedestrians, and other relevant data. This information helps the traffic signal controller make informed decisions and adjust signal timings accordingly. Here are some common types of sensors used in traffic signal systems:

Inductive Loop Detectors:

Inductive loops are the most commonly used sensors in traffic signal systems. These loops generate an electromagnetic field, and when a vehicle passes over the loop, it induces a change in the field, allowing the detector to detect the presence, speed, and length of vehicles. Inductive loop detectors are particularly effective for detecting larger vehicles, such as cars and trucks.

Video Detection Systems:

Video cameras are used to capture images or video footage of the traffic lanes. These cameras are typically mounted on poles or structures overlooking the intersection. Video detection systems use advanced image processing algorithms to analyze the video feed and detect vehicles, pedestrians, bicycles, and their movements. They can provide more detailed information than inductive loops, such as vehicle count, speed, and classification. Video detection systems are particularly useful in complex intersections or situations where multiple detection zones are required.

Microwave Radar Sensors:

Microwave radar sensors use microwave technology to detect the presence and movement of vehicles. These sensors emit microwave pulses and analyze the reflected signals to determine the presence, speed, and location of vehicles. Microwave radar sensors are effective in various weather conditions and can provide accurate detection across multiple lanes.

Passive Infrared (PIR) Sensors:

PIR sensors detect heat signatures emitted by vehicles or pedestrians. They work by sensing changes in the infrared radiation within their field of view. When a vehicle or pedestrian passes through the detection zone, the PIR sensor detects the change in heat and triggers a signal. PIR sensors are commonly used for pedestrian detection at crosswalks or to activate signals for vehicles at low-traffic intersections.

Ultrasonic Detectors:

Ultrasonic detectors use sound waves to detect the presence of vehicles. These detectors emit ultrasonic waves and measure the time it takes for the waves to bounce back after hitting a vehicle. By analyzing the time delay, the detector can determine the presence and location of vehicles. Ultrasonic detectors are often used in parking lots or garage entrances.

Advanced Detection Systems:

Advanced detection systems combine multiple sensor technologies to provide more comprehensive and accurate data. These systems integrate inputs from inductive loops, video cameras, radar sensors, and other sensors to create a detailed picture of the traffic conditions. They can detect various vehicle types, detect lane occupancy, measure speeds, and even identify specific vehicles for enforcement purposes.

It’s important to note that the choice of sensors depends on various factors, including traffic volume, intersection layout, budget constraints, and specific operational requirements. Traffic engineers and transportation agencies carefully analyze these factors to select the most appropriate sensors for each location.

The information gathered by these sensors is transmitted to the traffic signal controller, which uses it to optimize signal timings, prioritize movements, and improve overall traffic flow and safety.

The power supply is an essential component of traffic signal systems, providing the necessary electrical energy to operate the signal heads, sensors, controllers, and other associated devices. Here’s an overview of how power is supplied to traffic signals:

Electrical Grid Connection:

In urban areas and developed regions, traffic signals are typically connected to the local electrical grid. They draw power from the grid to operate. The power is distributed through underground or overhead electrical lines, which connect to the traffic signal cabinets or control boxes located near the intersections. Transformers are often used to step down the voltage to the appropriate levels required by the traffic signal equipment.

Backup Power Systems:

To ensure continuous operation during power outages or other electrical disruptions, traffic signals often incorporate backup power systems. These backup systems come into play when the main power supply from the grid is unavailable. Common backup power solutions include:

a. Uninterruptible Power Supply (UPS):

A UPS is a battery-based system that provides short-term backup power. It stores electrical energy when the main power is available and supplies it to the traffic signal system when the power is interrupted. UPS systems typically provide power for a limited duration, such as a few minutes to several hours, depending on their capacity and the load they need to support.

Emergency Generators:

In areas with frequent or prolonged power outages, traffic signals may be equipped with emergency generators. These generators run on fuel, such as gasoline or diesel, and automatically start when the main power supply is lost. Emergency generators can provide a more extended backup power supply, ensuring continuous operation of traffic signals until the main power is restored.

Energy-Efficient Technologies:

To optimize energy usage and reduce operational costs, traffic signal systems often employ energy-efficient technologies. This includes using LED (Light Emitting Diode) lamps in signal heads, which consume less electricity compared to traditional incandescent bulbs. LED lamps have longer lifespans, require less maintenance, and provide better visibility. Additionally, traffic signal controllers can be programmed to optimize signal timings based on traffic demand, reducing unnecessary idling and improving energy efficiency.

Solar-Powered Systems:

In remote areas or locations where connecting to the electrical grid is challenging or expensive, traffic signals may utilize solar power. Solar-powered traffic signals incorporate photovoltaic panels that capture sunlight and convert it into electrical energy. The energy is stored in batteries, which power the signal heads and other components. Solar-powered systems can provide sustainable and environmentally friendly solutions for traffic signal operation.

It’s worth noting that power supply configurations can vary depending on local regulations, budget constraints, and specific requirements. Traffic engineers and transportation authorities design and implement power supply systems to ensure reliable and uninterrupted operation of traffic signals, prioritizing safety and efficient traffic management.
