Card Machine Swipe How Works ?how its Works

Card Machine Swipe How Works ?

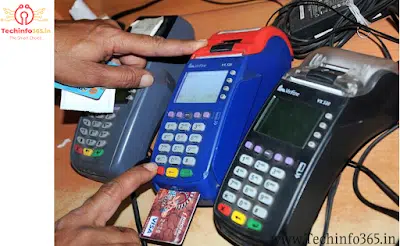

    Card machines, also known as point-of-sale (POS) terminals or card readers, are devices used to process payments made with credit or debit cards. The most common method of processing card payments is through the swipe or magnetic stripe on the back of the card.

Here’s how it works:

•        Magnetic Stripe: Most credit and debit cards have a magnetic
  stripe on the back. The stripe contains important information about the card,
  such as the card number, expiration date, and cardholder’s name. This data is
  stored magnetically in three tracks on the stripe.

•         Swiping the Card: To process a payment, the merchant or cashier
  swipes the card through the card machine. The machine has a slot or a tray
  where the card is inserted, usually with the magnetic stripe facing down. The card
  is slid through the slot, and the machine reads the data stored on the magnetic
  stripe.

• Magnetic Stripe Reader: Inside the card machine, there is a
  magnetic stripe reader. It consists of a magnetic head that detects the
  magnetic fields on the stripe as the card is swiped. The reader captures the
  data encoded on the stripe, which includes the card number, expiration date,
  and other necessary information.

•     Data Transmission: Once the magnetic stripe reader has read the
  card’s data, it converts the magnetic signals into digital information. This
  digital data is then encrypted for security purposes. The card machine
  typically connects to a payment network or payment processor via a wired or
  wireless connection.

•       Authorization Request: After the digital data is encrypted, the
  card machine sends an authorization request to the payment network or
  processor. The request contains the encrypted card data and the transaction
  amount. The payment network then forwards the request to the card issuer (e.g.,
  the bank that issued the card).

•    Card Issuer Verification: The card issuer receives the
  authorization request and verifies the card’s details and the availability of
  funds. They check if the card is valid, not expired, and if the cardholder has
  sufficient funds or credit limit for the transaction.

•      Authorization Response: Once the card issuer completes the
  verification process, it sends an authorization response back to the card
  machine through the payment network. This response includes an approval or
  decline message and may include additional information, such as a unique
  authorization code.

•     Transaction Completion: Based on the authorization response
  received, the card machine completes the transaction. If the response is
  approved, the machine prints a receipt for the customer to sign or enter a PIN
  (Personal Identification Number) for verification. If the response is declined,
  the machine notifies the merchant, and an alternative payment method may be
  requested.

    It’s worth noting that card machines also support
other payment methods, such as chip and PIN, contactless payments, and mobile
payment services like Apple Pay or Google Pay. These methods provide additional
layers of security and convenience

Types Of Swipe Machines

•         Magnetic Stripe Readers (MSR): These are the traditional card
  readers that read the magnetic stripe on the back of credit and debit cards.
  They typically require the card to be swiped through a slot on the machine.
  However, with the advancement of technology and the transition to EMV chip
  cards, the usage of MSR card readers has declined.

•          EMV Chip Card Readers: EMV (Europay, Mastercard, and Visa) chip
  card readers are designed to process transactions using the embedded chip on
  the card rather than relying solely on the magnetic stripe. These readers can
  handle both chip and PIN transactions, where the card is inserted into the
  reader and the user enters a PIN for verification.

•      Contactless Card Readers: Contactless card readers use Near
  Field Communication (NFC) technology to enable fast and convenient payments.
  They can read contactless-enabled credit and debit cards, as well as mobile
  payment services like Apple Pay, Google Pay, or Samsung Pay. Customers can
  simply tap their cards or smartphones on the reader to make a payment.

•        Mobile Card Readers: These are card readers that can be
  connected to a smartphone or tablet, turning them into mobile payment
  terminals. Mobile card readers often use a mobile app that pairs with the
  device and enables businesses to accept card payments on the go. They can
  connect via Bluetooth or the audio jack of the mobile device.

•      Virtual Terminal: A virtual terminal is an online-based card
  processing solution that allows merchants to accept card payments without the
  need for physical card readers. Merchants can manually enter the customer’s
  card information through a secure web interface. Virtual terminals are often
  used for mail order, telephone order (MOTO), or online transactions.

•        Integrated POS Systems: Some businesses use integrated
  point-of-sale (POS) systems that combine a card reader with other features such
  as inventory management, sales reporting, and customer relationship management.
  These systems often include touchscreen displays and may have multiple payment
  options, including swipe, chip, and contactless.

• ·
  Self-Service Kiosks: Self-service kiosks, commonly found in retail
  stores or fast-food restaurants, feature built-in card readers that enable
  customers to make payments themselves. These kiosks may support various payment
  methods, including swiping, inserting chip cards, or tapping contactless cards
  or smartphones.

It’s important to note that the availability of specific types of card machines may vary depending on the region and the payment processing provider. Merchants can choose the type of card machine that suits their business needs and the payment options they want to offer to their customers.

Types of Cards

There are various types of
cards used for different purposes.
 Here are some common types of cards:

• Credit Cards: Credit cards are issued by financial institutions
  and allow cardholders to borrow money up to a certain credit limit. They enable
  users to make purchases and pay them off over time with interest or in full to
  avoid interest charges. Credit cards often come with rewards, cashback
  programs, and other benefits.

• Debit Cards: Debit cards are linked to a bank account,
  and when a transaction is made, the funds are directly deducted from the
  account. Unlike credit cards, debit cards do not involve borrowing money and
  typically do not charge interest. They are widely used for everyday
  transactions and cash withdrawals from ATMs

• Prepaid Cards: Prepaid cards
  are loaded with a specific amount of money in advance. They can be used for
  purchases until the funds are exhausted. Prepaid cards are not linked to a bank
  account, and they do not allow for credit or overdraft. They are often used as
  gift cards, travel cards, or for budgeting purposes.

• Charge Cards: Charge cards
  are similar to credit cards, but they require the balance to be paid in full by
  the end of each billing cycle. Unlike credit cards that allow carrying a
  balance, charge cards do not have a preset spending limit, but the full balance
  must be paid off regularly.

• Gift Cards: Gift cards are preloaded with a specific amount of
  money and are typically issued by retailers or businesses. They are given as
  gifts and can be used to make purchases at the respective stores or
  establishments.

• Loyalty Cards: Loyalty
  cards, also known as rewards cards or membership cards, are issued by
  businesses to reward customer loyalty. These cards track customer purchases and
  provide benefits such as discounts, points, or exclusive offers.

• ATM Cards: ATM cards are used primarily for withdrawing cash
  from Automated Teller Machines (ATMs). They may be linked to a specific bank
  account or allow access to multiple accounts.

• Smart Cards: Smart cards,
  also known as chip cards or integrated circuit cards (ICC), have an embedded
  microchip that stores and processes data. They provide enhanced security and
  can be used for various applications, including payment cards, identification
  cards, access control, and public transportation.

• ID Cards: ID cards are
  official identification documents issued by government authorities, educational
  institutions, or organizations. They typically include the cardholder’s name,
  photo, and other personal information, serving as proof of identity

• Insurance Cards: Insurance
  cards are issued by insurance companies to policyholders. They contain
  important information related to the individual’s insurance coverage and policy
  details.
